Waveshare Industrial ESP32-S3 Control Board with RS485 and CAN Communication Interfaces, Wi-Fi/Bluetooth Support, Built-in Multiple Protection Circuits
$27.99
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by www.polarizedgear.com
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$27.99
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by www.polarizedgear.com
Free 30-day returns Details
Product details
| Management number | 217004106 | Release Date | 2026/04/19 | List Price | $11.20 | Model Number | 217004106 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

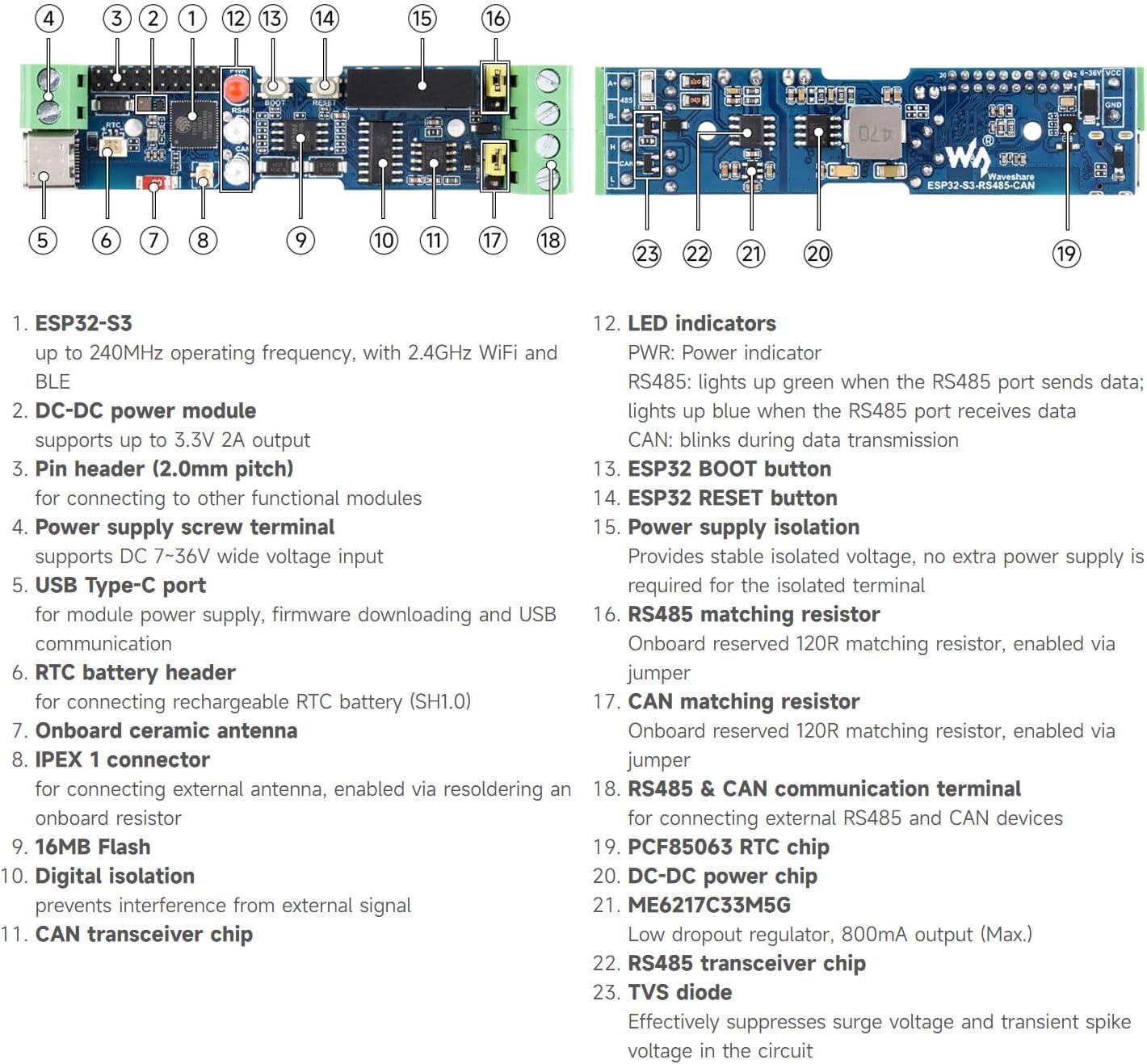

- High-Performance ESP32-S3 Microcontroller: The device is powered by the ESP32-S3 microcontroller featuring an Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz, offering powerful performance for complex applications and real-time processing.
- Advanced Dual-Mode Wireless Communication: It integrates 2.4GHz Wi-Fi and Bluetooth 5 (LE) dual-mode wireless communication, ensuring reliable, high-speed RF performance for seamless connectivity in a variety of environments.
- Multiple Communication Interfaces: The module comes with both an isolated RS485 interface and an isolated CAN interface, enabling easy connection to various industrial devices, such as RS485 Modbus modules or CAN-based devices, for versatile application support.

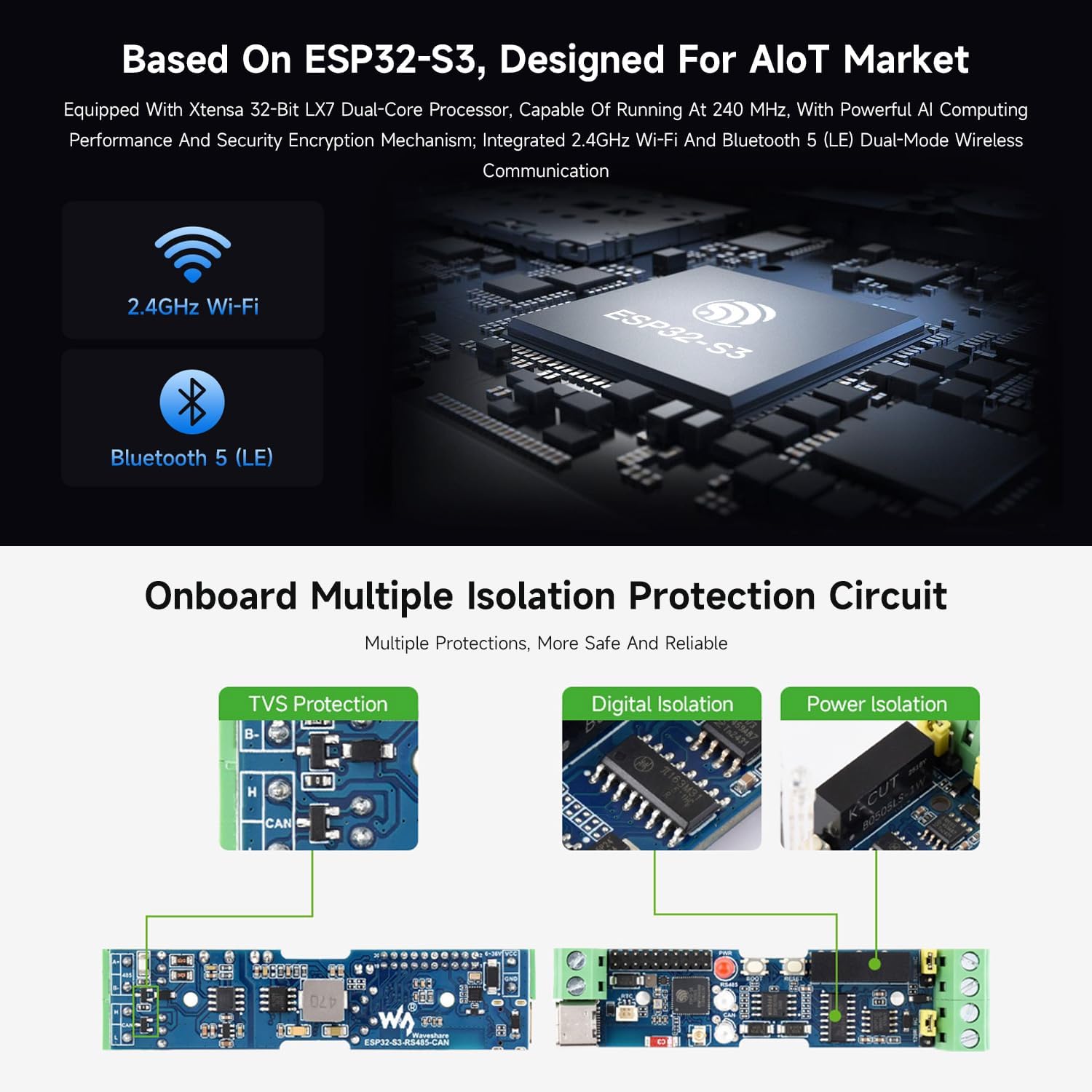

- Flexible Power Supply and Isolation Features: Featuring an onboard power supply screw terminal supporting a wide voltage input range of 7~36V, the device is ideal for industrial environments. It also includes onboard digital isolation, unibody power supply isolation, and optocoupler isolation to prevent external signal and high-voltage interference, ensuring safe and stable operation.

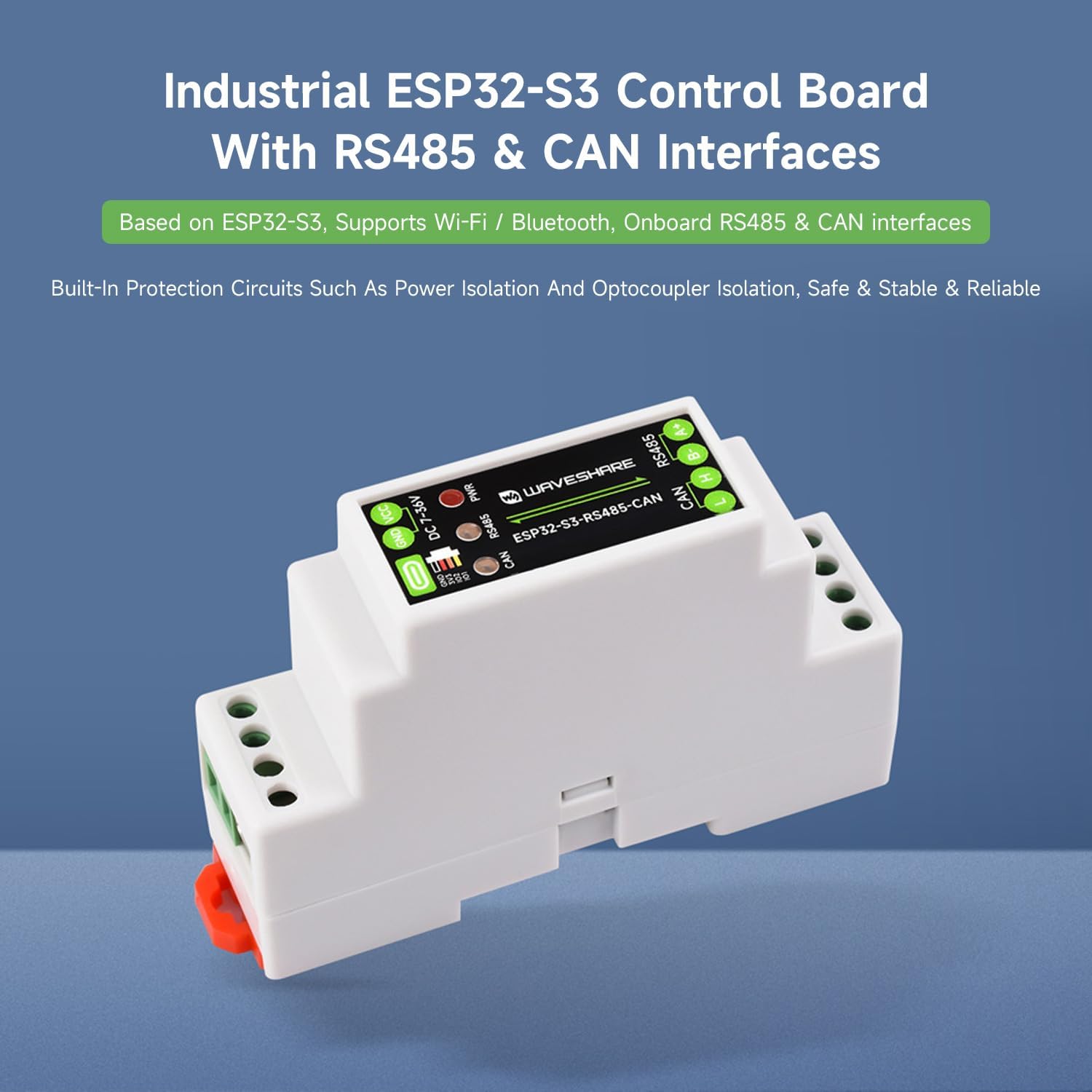

- Convenient Monitoring and Installation: Equipped with RS485 TX/RX and CAN indicators for real-time monitoring of module status, along with an onboard RTC chip for task scheduling, this module is housed in a rail-mounted protective case for easy installation and secure use in industrial applications.
| Brand | waveshare |
|---|---|
| Platform | Custom |
| Model Name | ESP32-S3-RS485-CAN |
| Manufacturer | Waveshare |
| Model Number | ESP32-S3 |
| BuiltIn Media | ESP32-S3-RS485-CAN |
| Number of Ports | 4 |
| Total Usb Ports | 1 |
| Warranty Description | 1 year |
| Compatible Processors | ESP32-S3 |
| RAM Memory Technology | DRAM |
| Memory Slots Available | 2 |
| Number of Ethernet Ports | 1 |
| Main Power Connector Type | Screw terminal |
