STEPPERONLINE Closed Loop Stepper Motor 1 Axis CNC KIT 52Ncm/73.64oz.in Nema 17 Motor & 0-3.0A 24-48VDC Closed Loop Stepper Driver CL42T V4.1

Motor Specification *Manufacturer Part Number: 17HS19-2004D-E1K *Number of phase: 2 *StepAngle: 1.8deg *Holding Torque: 52Ncm(73.64oz.in) *Rated Current/Phase: 2.0A *Phase Resistance: 1.1ohms *Inductance: 1.7mH ± 20%(1KHz) *Frame Size: 42 x 42mm *Body Length: 68mm *Shaft Diameter: Φ5mm *Shaft Length: 24mm *D-Cut Shaft Length: 15mm *Lead Length: 500mm Encoder Specification *Output Circuit Type: Differential type *Encoder Type: Optical Incremental *Encoder Resolution: 1000PPR(4000CPR) *Output Signal Channels: 2 channels *SupplyVoltage Min: 5V *SupplyVoltagemAx: 5V *Output HighVoltage: <4V *Output LowVoltage: <1V Driver Specification *Output Peak Current: 0~3A *InputVoltage: +24~48VDC (Typical 24VDC) *Logic Signal Current: 7~16mA(Typical 10mA) *Pulse Input Frequency: 0~200kHz *Pulse Width: 2.5μS *RS232 debugging interface available *Low noise andVibration, smooth motion *Protections for overVoltage, over current and position following error

• This CNC kit includes:

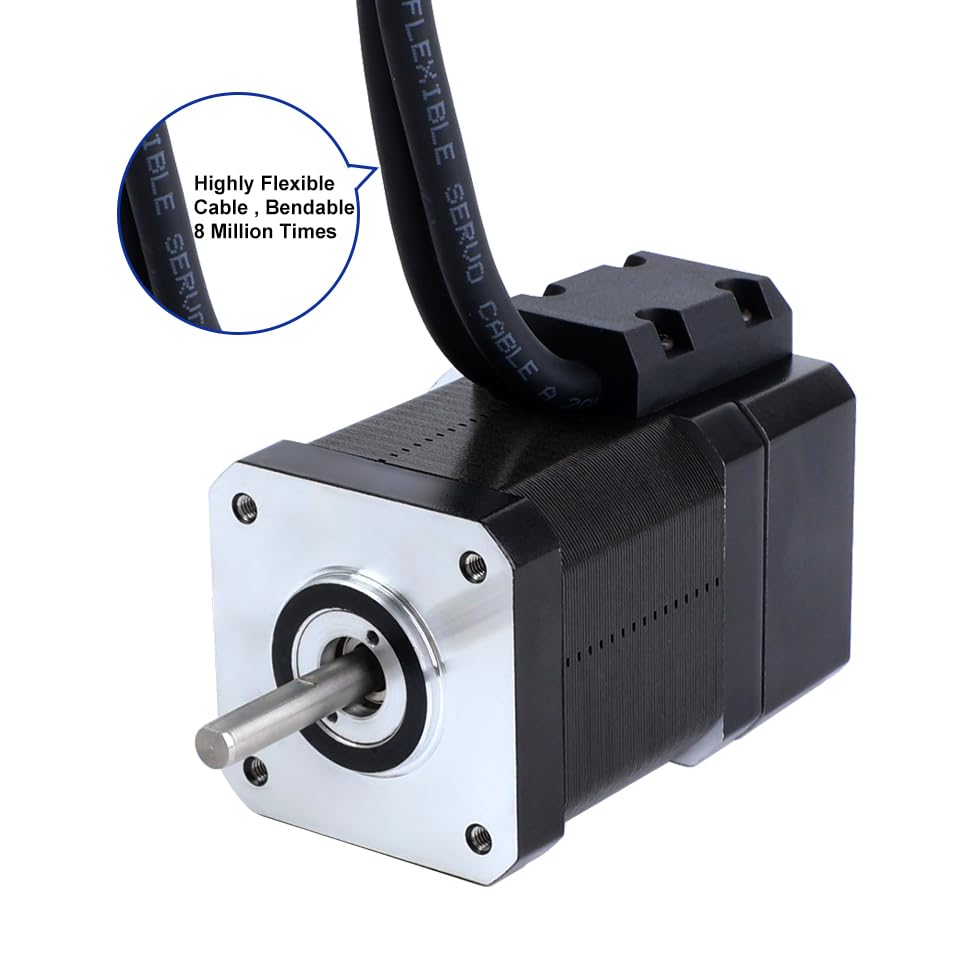

• 1 x 17HS19-2004D-E1K: Nema 17 Closed Loop Stepper Motor 52Ncm(73.64oz.in) with Encoder 1000PPR(4000CPR)
• 1 x CL42T-V41: Closed Loop Stepper DriverV4.1 0-3.0A 24-48VDC for Nema 11, 14, 17 Stepper Motor
• 1 x CABLE-PC-1: RS232 Debugging Cable
• Suit for 3D printer/CNC machine/Carving Machine/Dispenser/Automation Application
