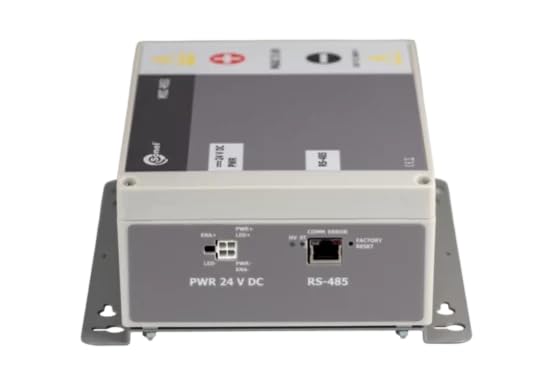

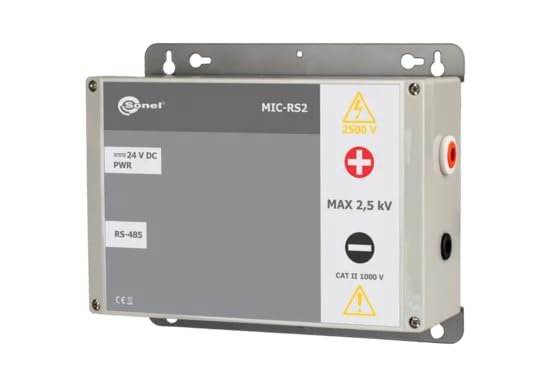

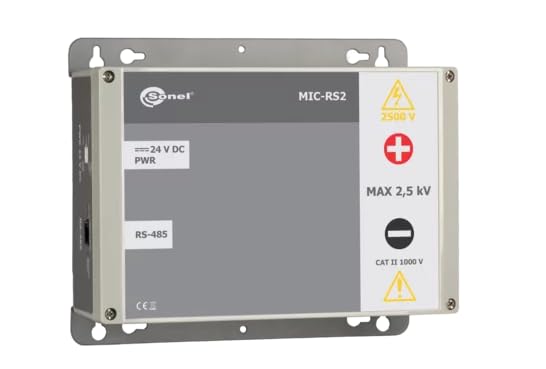

Sonel MIC-RS2 Insulation Resistance Meter 50…2500 V 1.4 mA

The instrument is dedicated for companies and sites, in which continuous or random assessment of the insulation resistance is required as part of production. It is also perfect for automated production systems. The meter can be installed in the distribution board, at the operator’s station (assembly or quality control bench), in the control cabinet or even in the rack enclosure. It can be controlled by switchgear management devices, such as Siemens S7 Simatic controllers. The measurement is performed by means of clamps, used to connect the test leads of the system, in which the instrument is installed. It is possible to prepare a version of the meter with the interface and communication protocol requested by the customer. The meter is designed for building in/permanent installation. It plays a Secondary/Slave role, meaning that it executes the commands issued by the Main/Master control device and it does not initialise the transmission on its own. It enables measuring the insulation resistance with the test voltage of up to 2500 V. There are two measurement modes available: automatic (continuous) and manual (one-time). Under automated testing, the meter can be programmed to measure the capacity or not.

• Measurement voltage selected within the range of 50…2500 V
• Automatic discharge of the measured object’s capacitance upon completion of insulation resistance measurement
• Measurement current 1.4 mA
• Protection against measurement of live objects
• Meter meets the requirements of the staCapacitance measurement after measurement of RISOndard IEC 61557-1 and IEC 61557-2.
