Replace HGM4010 DSE4610 DC40S Diesel Gas Gasoline Generator Engine Controller Module Panel DC42S Replace HGM4020 DSE4620(DC42SR RS485 Port)

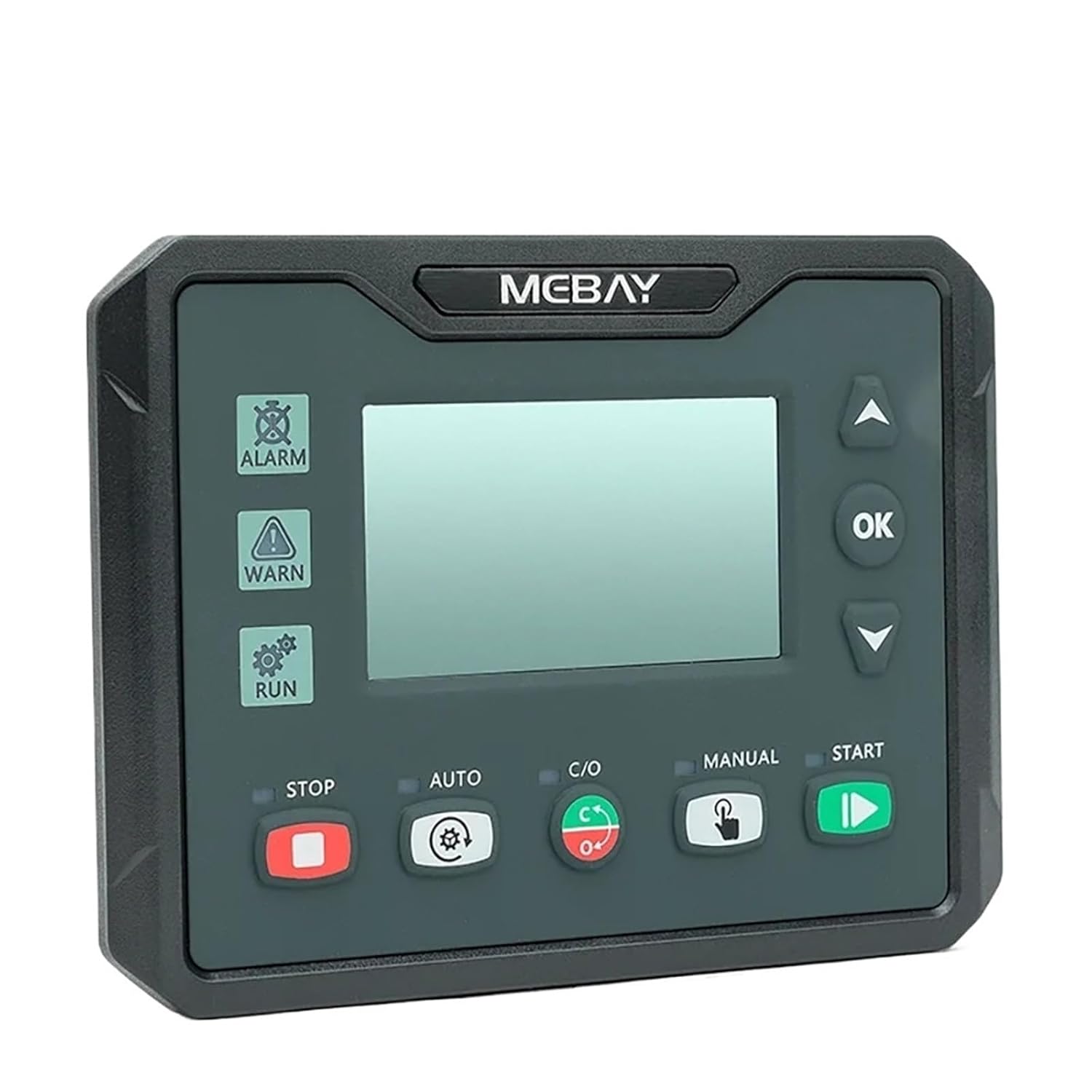

Electronic Engine Control1. SummaryThis series controller is specialized for Diesel / Gasoline / Gas Genset Start, Stop, Parameters monitoring, faults-checking as well as data setting. 2.8 inch screen display with UI design is adapted in this controller that the relative failures can be displayed directly. All the parameters can be displayed by simulated indicators and words. Besides, screen can display various faults in the same time that the genset will be stopped once it can't worksmoothly.There are Chinese/English interface options, more language can be set according to user's request. All the parameters can be configured through the front face buttons or use programmable interface by RS485 or USB to adjust via PC. It can be widely applied for all kinds of auto control system of gensets.2. Main FeaturesThere are ten Models under DC4xS/C series.DC40S: Used for single machine automation. Start/Stop through remote start signal.DC40SR: Based on DC40S, it adds RS485 port.DC42S: Based on DC40S, it adds Mains monitoring and AMF (Mains/Generator automatic switching control), especially suitable for the automation system composed by mains and genset.DC42SR: Based on DC42S, it adds RS485 port.Dual core 32bit high performance single chip microcomputer.2.8 inch 240 * 128 high-resolution screen, Available in 6 languages, user's language set if necessary.Indicator and number display through UI surface.Acrylic material is adapted to protect the screen.Silicone panels;USB Port: parameters can be set even without power through USB port to monitor in real time.With RS485 communication port, can achieve "Three Remote" functions via MODBUS protocol.Standard CAN communication port,built-in J1939 protocol, has matched more than 40 kinds of engines;Various kinds of parameters display. DC4xS/C GENSET CONTROLLER USER MANUALInput/output function, status can be shown directly.
