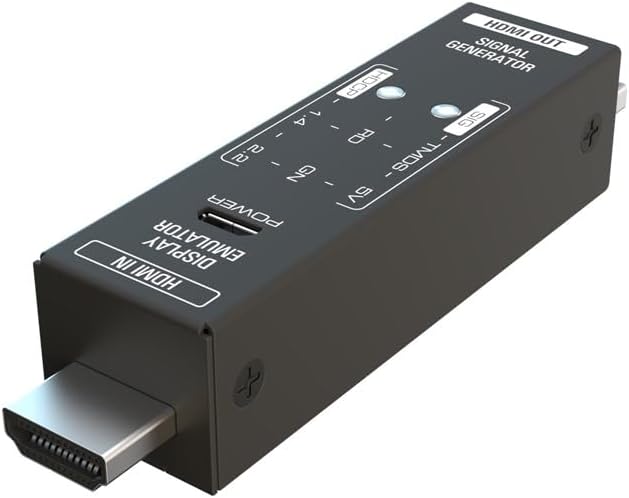

Monoprice HDMI Signal Generator and Display Analyzer

Versatile Installation Tool for AV Professionals The HDMI Signal Generator and Display Analyzer is a highly versatile tool designed for AV installers and testers, streamlining a wide range of signal generation and analysis tasks within a single compact device. Functioning both as an HDMI signal generator and a display emulator (signal analyzer), this innovative unit supports resolutions up to 4K@60Hz in rich 4:4:4 chroma, ensuring full compatibility with the latest display technologies. A convenient 4 pin DIP switch allows users to easily set video resolutions and manage HDCP content, with selectable signal outputs including 4K@60Hz 4:4:4, 4K@60Hz 4:2:0, 4K@30Hz 4:4:4, and 1080p@60Hz. The device analyzes HDCP content and signal status, such as 5V and TMDS, while intuitive LED indicators clearly display signal and HDCP status. Supporting HDCP OFF, HDCP 1.4, and HDCP 2.2 output modes as well as four test patterns for verifying HDCP versions this analyzer ensures thorough compatibility and diagnostic capability. It is also backwards compatible with USB 2.0 and 1.1, enhancing its flexibility in a range of setups. With its robust feature set and user friendly controls, the HDMI Signal Generator and Display Analyzer is an essential companion for any AV professional seeking reliability and precision in installation or testing environments.

• Used as HDMI signal generator or display emulator (signal analyzer)
• Provides 4‑pin DIP switch for setting video resolution and HDCP content
• Supports 4K @60Hz 4:4:4, 4K@60Hz 4:2:0, 4K@30Hz 4:4:4, and 1080p@60Hz video signal outputs
• Supports HDCP OFF, HDCP 1.4, and HDCP 2.2 outputs
• Supports four different test patterns for HDCP versions
