MeLphi Permalloy 10K:40K Audio Transformer Copper Plated Shield 2X Boost Transformer Frequency Response 20Hz ~ 62KHz -1.5DB (Size : RCA to RCA)
Product details
| Management number | 211048737 | Release Date | 2026/04/04 | List Price | $36.00 | Model Number | 211048737 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

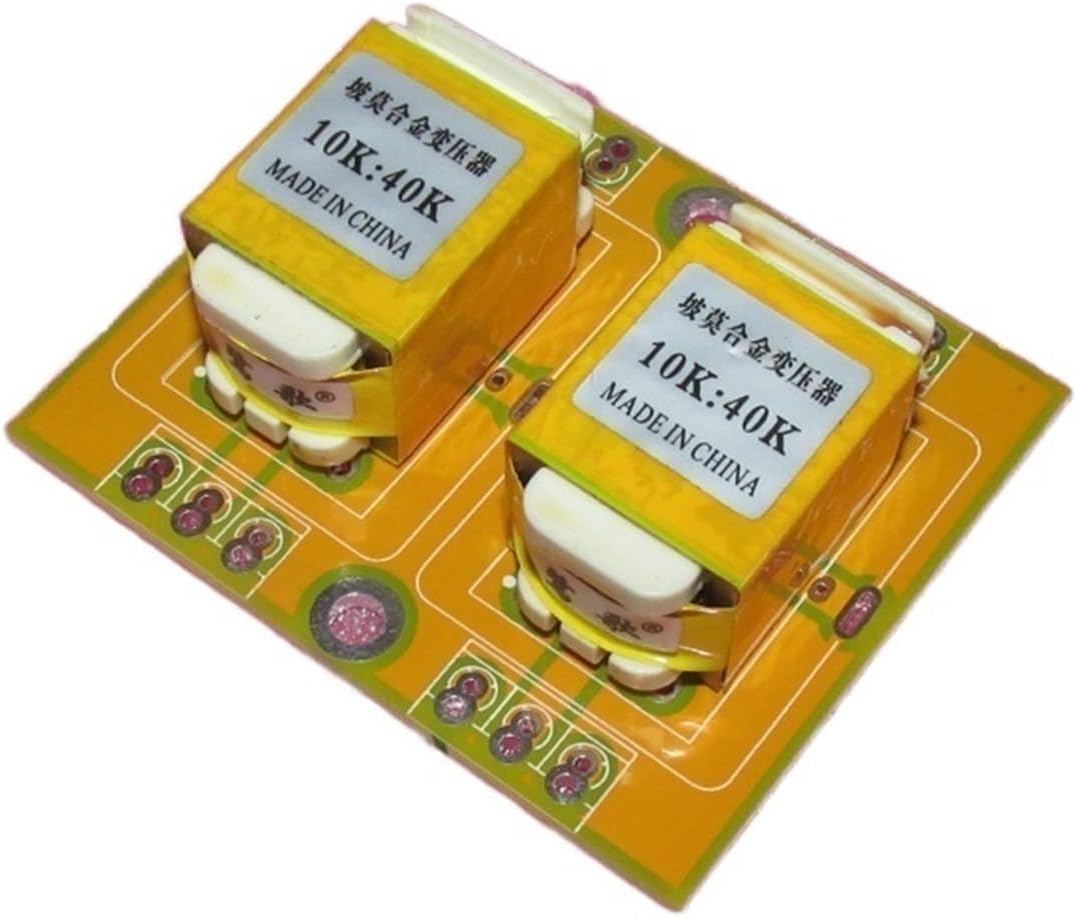

Audio TransformersPermalloy 10K: 40K audio signal isolation transformer, 2 times step-up transformer, the parameters are marked on the transformer, paired with a board-mounted shield!10K: 40K wide frequency response:20Hz ~ 62KHz -1.5DB, imported permalloy material 4N oxygen-free copper lacquered copper covered wire winding.10K:40K transformer measured:Primary inductance: about 25H to 35H.Secondary inductance: about 100H to 120H.Primary copper resistance: about 1.06KSecondary copper resistance: about 2.12K.Transformer over signal current 10mA.Frequency response: 20Hz ~ 62KHz -1.5DBBoard size: 63X53mm Double-sided board thickness 2mm Shield size: 36x28mm
- Audio Transformers
| Brand Name | MeLphi |
|---|---|
| Unit Count | 1.0 Count |
| Item Weight | 1 Grams |
| Part Number | MeLphi |
| Manufacturer | MeLphi |
