Freenove ESP32-S3 ESP32 S3 Display CYD 2.8 Inch IPS Capacitive Touch Screen 240x320 Pixel, Supporting XiaoZhiAI AI, Dual-core 32-bit 240 MHz Microcontroller WiFi+BT, C Code LVGL Projects Tutorial

Purchase Options: This kit has two purchasing options. One option has a touch screen, and the other has a non-touch screen. Overview: This is a screen with onboard dual-core 32-bit 240 MHz ESP32-S3 microcontroller. This kit helps you learn ESP32-S3, LVGL GUI library and connection with AI (LLM). We provide free technical support to help you with any questions and problems. Tutorial and Code: Comes with detailed tutorial and code. (Download or view online, no paper tutorial.) Including several typical projects with code and explanations. The tutorial link can be found on the product box. Contents of Main Tutorial: (Note: The LVGL chapters are mainly for touch screen.) Preface Chapter 1 Serial Chapter 2 RGB Chapter 3 Button Chapter 4 Button Interrupt Chapter 5 Voltage Chapter 6 Memory Card Chapter 7 Play Music Chapter 8 BLE Chapter 9 WIFI Web Server Chapter 10 TFT Screen (The following chapters are mainly for touch screen.) Chapter 11 TFT Touch Chapter 12 TFT Touch Draw Chapter 13 LVGL Text Chapter 14 LVGL Picture Chapter 15 LVGL Timer Chapter 16 LVGL RGB Chapter 17 LVGL Music Chapter 18 LVGL Multifunctionality Chapter 19 LVGL Demo What's Next? Contents of XiaoZhiAI Tutorial: Please refer to tutorial for details. Package Includes: 1 x Screen monitor 1 x Speaker 1 x USB A to C cable 2 x Connecting cable (4P) 1 x Connecting cable (2P)

• Talk to AI (LLM): Continuous and natural communication, just like talking to a human, without needing to press a button or say a wake-up word (Notes: Service provided by XiaoZhiAI, registration and login required. Free service, may be unavailable in some regions. Please refer to tutorial for details)

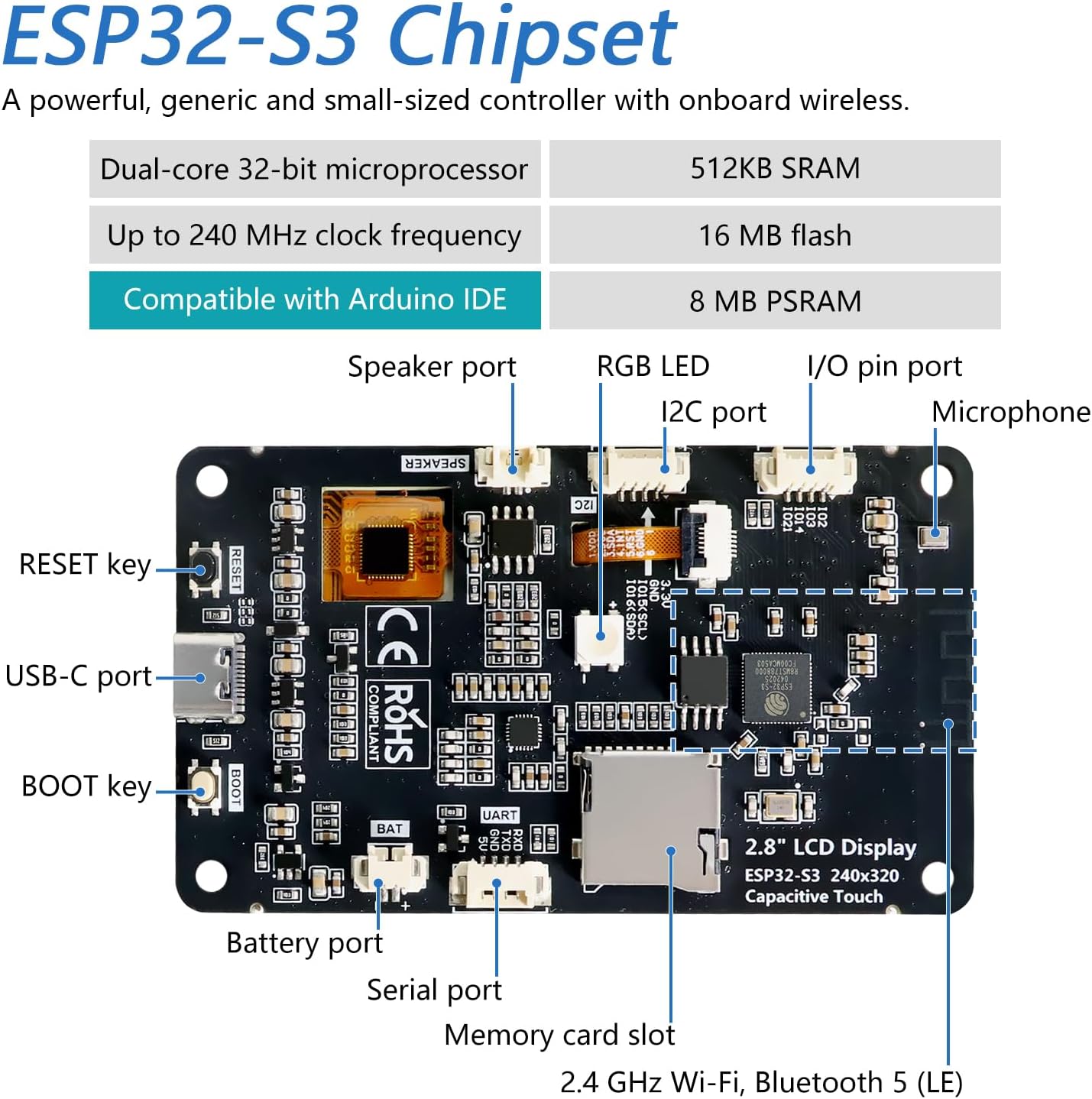

• Onboard ESP32-S3 Chipset: Dual-core 32-bit microprocessor up to 240 MHz, 16 MB flash, 8 MB PSRAM, 512 KB SRAM, 384 KB ROM, 2.4 GHz Wi-Fi and Bluetooth 5 (LE), with USB-C code uploader
• Onboard Screen: 2.8 inch, 240x320 pixel, IPS type wide viewing angle, ILI9341 driver IC, 4-wire SPI communication, single-point capacitive touch screen
• Ports and Devices: Memory card slot, USB-C port, serial port, I2C port, I/O pin port, battery port, RGB LED, BOOT key, RESET key, microphone, speaker port (Comes with a speaker)
• Tutorial and Code: Example projects for ESP32-S3 and LVGL GUI library, and connection with AI (The tutorial link can be found on the product box, no paper tutorial)
