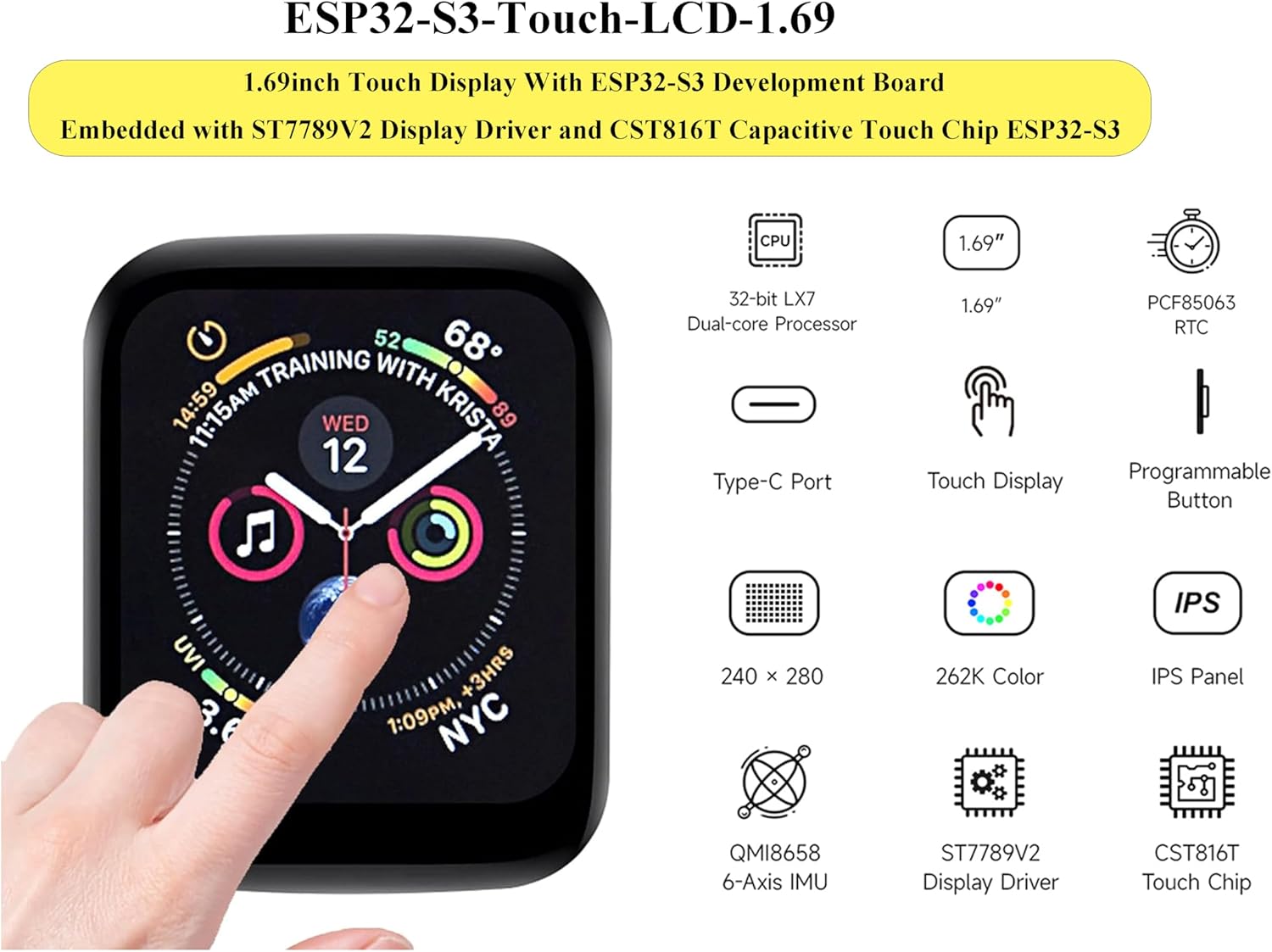

ESP32-S3 1.69inch Touch Display Development Board, 240×280 Pixels, 262K Color, Micro LCD Display with ESP32-S3, Accelerometer and Gyroscope Sensor
Product details
| Management number | 217004175 | Release Date | 2026/04/19 | List Price | $11.52 | Model Number | 217004175 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

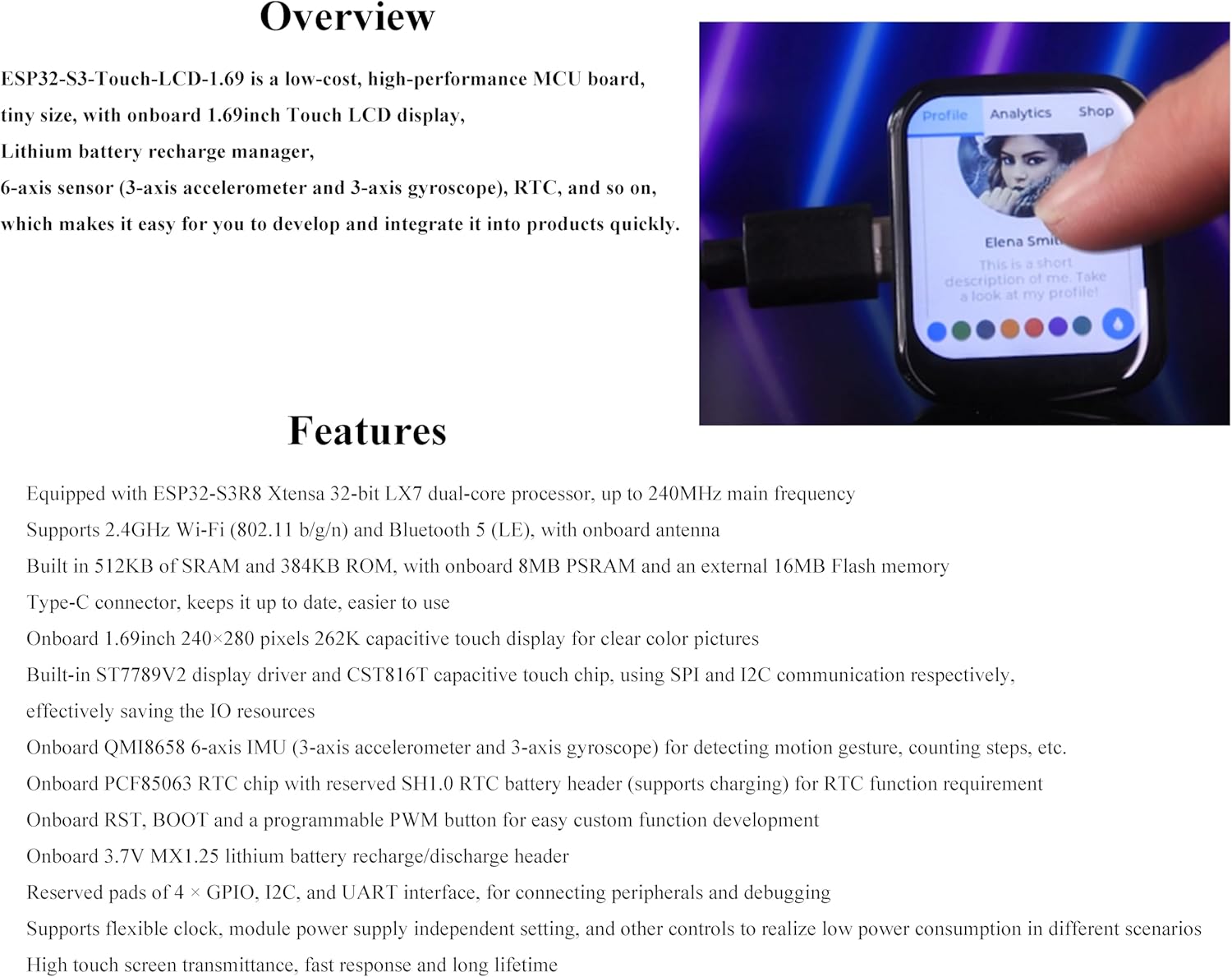

- ESP32-S3 onboard 1.69inch LCD display, Li-th-ium ba-tte-ry recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), RTC, and so on, which makes it easy for you to develop and integrate it into products quickly
- Equipped with ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. Supports 2.4GHz W-i-F-i (802.11 b/g/n) and Blue-tooth 5 (LE), with onboard antenna
- Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory
- Onboard 1.69inch 240×280 pixels 262K capacitive touch display for clear color pictures
- Built-in ST7789V2 display driver and CST816T capacitive touch chip, using SPI and I2C communication respectively, effectively saving the IO resources
- Onboard PCF85063 R TC chip with reserved SH1.0 R TC batte-ry header (supports charging) for RTC function requirement. Onboard RST, BOOT and a programmable PWM button for easy custom function development
- Onboard 3.7V MX1.25 lith-iu-m ba-tte-ry recharge/discharge header. Reserved pads of 4 × GPIO, I2C, and UART interface, for connecting peripherals and debugging
- Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc.
- Comes with Online Development Resources /User Manual: bit.ly/3QKw5Mv
| Brand | UeeKKoo |
|---|---|
| Model Name | ESP32-S3 with 1.69inch Touch LCD |
| Manufacturer | UeeKKoo |
| Model Number | ESP32-S3 with 1.69inch Touch LCD |
| BuiltIn Media | ESP32-S3 1.69inch Touch Display |
| Processor Brand | Espressif |
| Processor Count | 2 |
| Processor Speed | 240 MHz |
| Operating System | FreeRTOS |
| Compatible Devices | Computers, Smartphones, Microcontrollers, Sensors |
| RAM Memory Installed | 8 MB |
| Warranty Description | Technical Support is provided, please feel free to contact us if you have any problem! |
| Wireless Compability | 802.11bgn, Bluetooth |
| RAM Memory Technology | PSRAM |
| Connectivity Technology | Bluetooth, GPIO, I2C, Wi-Fi |
| Memory Storage Capacity | 24 MB |
