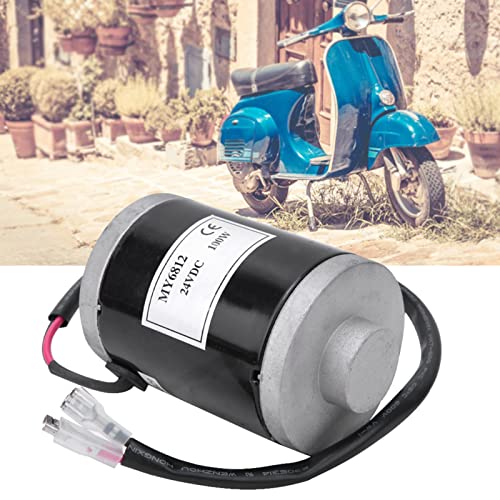

Electric Motor 24V 200W,Brushed DC Motor,MY6812 24V 100W High Speed Small Brush Motor Electric Motor with Belt Pulley Electric Scooter E Accessory

1. This product is a small brush motor, made of premium aluminum material.2. With metal belt pulley, strong, for long time use.3. The motor length of 100mm is 68mm in diameter, the shaft length is 28mm, the shaft diameter is 12mm, the distance between the 2 fixed holes of the motor is 36mm, and the sprocket wheel is the 9 teeth sprocket wheel of the 25H model.4. The shaft diameter: 12mm (single milling slot 1mm).5. Suitable for electric scooter, electric , etc.Specification:Condition: Brand NewItem Type: Brushed MotorModel: MY6812Material: aluminumColor: as picture shownRated power: 100W (kW)Rated voltage: 24 (V)Main application: scooter, electric vehicleRated voltage range of 3C: below 36V DCRated current: Rated speed (RPM): 2500±5%Maximum speed (RPM): 3500±5%No-load current: <0.9ARated torque: 0.56 nm: belt pulley, metalShaft diameter: 8mm (single milling slot 1mm)Efficiency: > 68%Motor length: 100mm/3.9inchMotor diameter: 68mm/2.7inchShaft length: 28mm/1.1inchShaft diameter: 12mm/0.5inchMotor fixed holes distance: 36mm/1.4inchSprocket: 25H 9 teeth sprocket2800 RPM 6.0 amperes rated current 0.35 N.mFor: mini scooters or DIYPackageList:1 x Brushed Motor

• Premium Aluminum Construction: This small brush motor is expertly crafted from aluminum material, ensuring durability and long-lasting performance.
• Features Metal Belt Pulley: Our electric brushed motor is equipped with a metal belt pulley, adding strength and robustness to its design.
• Motor Specifications: With a motor length of 100mm and a diameter of 68mm, this motor is designed to fit various applications. The shaft length measures 28mm with a diameter of 12mm. The distance between the two fixed holes is 36mm, and it comes with a 9-teeth sprocket wheel of the 25H model.
• Versatile Compatibility: Our brushed motor is suitable for a wide range of electric vehicles, including electric scooters, electric , and more.
• Shaft Diameter and Milling Slot: The motor's shaft diameter is 12mm, featuring a single milling slot of 1mm. This design enhances compatibility and allows for easy installation and connection to other compatible components.
