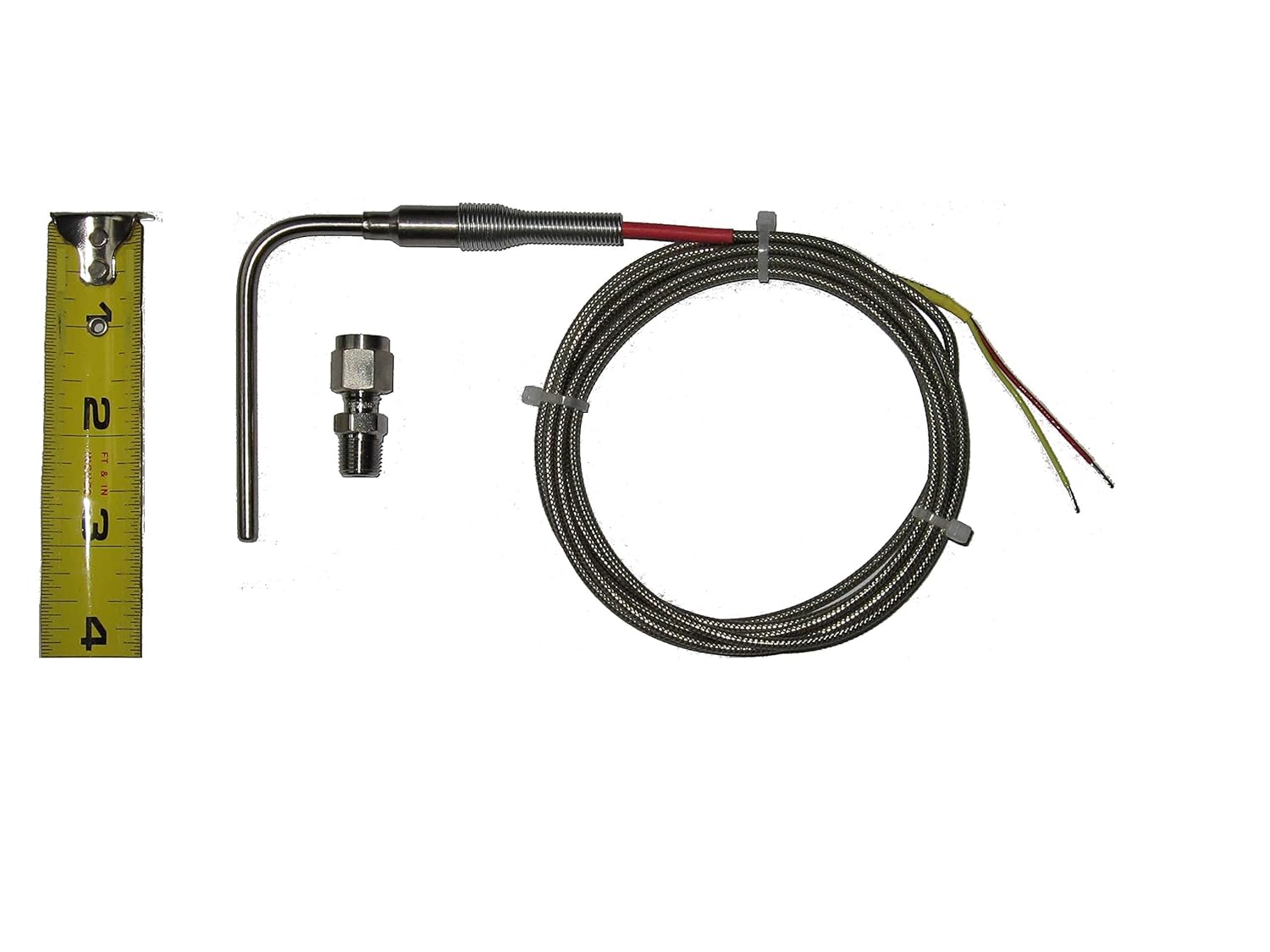

EGT Probe - Diesel - 3/16" Diameter - 6' Cable - Type K Thermocouple - -148F to 2372F Range - Special Limits of Error Accuracy

Applications: Motor Sports, Marine, Aviation, Power Gen, Research & Development, Alternative Energy, Military The Exhaust Gas Temperature Sensor is specifically designed for use in racing, tuning, and testing applications. Made in the USA from superior materials. The Exposed Tip sensing junction provides immediate response to dynamic temperature changes.The Exhaust Gas Temperature Probe is capable of surviving extreme vibration and heat up to 2300 degrees F (1300 degrees C). The EGT probe will fit most internal combustion engine exhaust systems from approximately .750 inch diameter up to about 4 inch diameter with nominal installation modifications. The EGT probe is 0.187 diameter (4.75 mm) with a 90-degree bend to accommodate tight mounting locations. An adjustable (316 Stainless Steel) 1/8 NPT compression fitting adapter is included. All of our EGT probes are handmade in the USA Technical Specifications EGT Probe Specifications: Type K Thermocouple -148°F to 2372°F range (-100°C to 1300°C) Special Limits of Error accuracy (+/- 0.4% of reading) Probe diameter 3/16 inch (0.187 inch) (4.75 mm) Max tip insertion depth = 1.1 inch Inconel 600 protective sheathing for longevity at high temperatures Sheath Wall Thickness 0.023" (.58 mm), MgO insulated Stainless steel over-braid cable with FEP insulated conductors; 6, 12 or 25 foot Response time constant: 1200 milliseconds Compression Fitting (included): 316 Stainless steel Adjustable 1/8 NPT thread MADE IN THE USA

• Type K Thermocouple
• -148°F to 2372°F range (-100°C to 1300°C)
• Special Limits of Error accuracy (+/- 0.4% of reading)
• Inconel 600 protective sheathing for longevity at high temperatures
• Stainless steel over-braid cable with FEP insulated conductors
