DIN Rail Mount AC 120V NEMA 5-15R 4 Receptacle Outlet Power Module, with Rocker Switch Thermal Circuit Breaker Overload Protector
$60.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by www.polarizedgear.com
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$60.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by www.polarizedgear.com
Free 30-day returns Details
Product details
| Management number | 213667156 | Release Date | 2026/04/12 | List Price | $24.00 | Model Number | 213667156 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

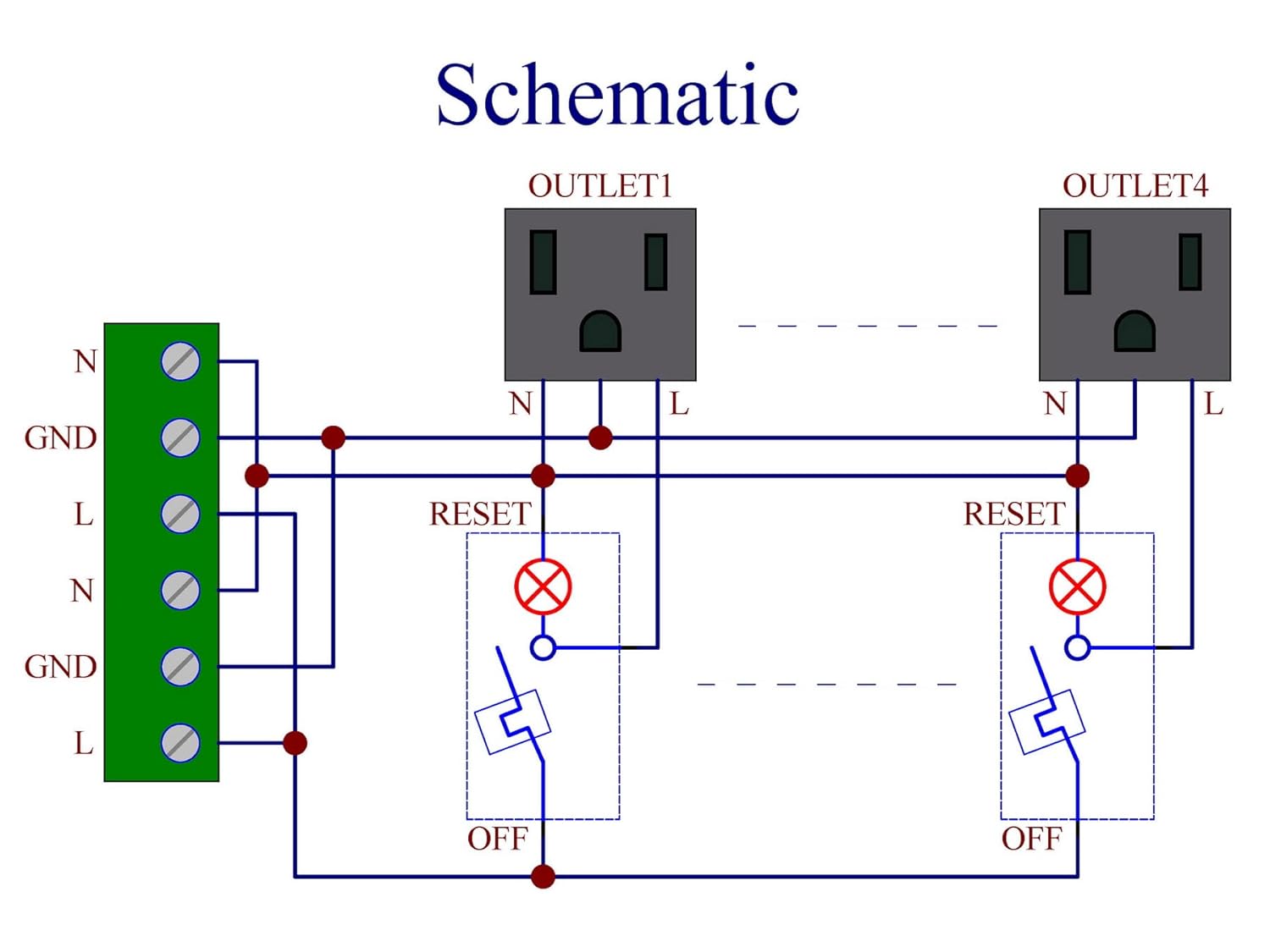

- Outlet: four 3-prong grounded NEMA 5-15R AC receptacles. Reinforced AC receptacle to ensure stability.
- Working voltage AC 120V. One receptacle rated current 10 Amps(limited by overload protector rated current). Total receptacles output rated current 30 Amps.
- Resettable rocker switch thermal circuit breaker overload protector current 10 Amps, built-in red indicator, support manually control output ON / OFF.
- Input terminals pitch 6.35mm/0.25", maximum current 30 Amps for per position, wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw. Support power supply expansion connect to other modules.
- DIN rail mount carrier can support width 35mm 32mm 15mm rail. High quality fireproof nylon material.
- UL CE certified DIN rail nylon material mount carrier. UL 94-V0 certified FR-4 fiberglass material PCB. UL CE CQC certified terminal blocks. UL certified NEMA 5-15R receptacle. UL certified circuit breaker.
| Model | D-1565T |
|---|---|
| Voltage | 120 Volts |
| Amperage | 10 Amps |
| Brand Name | OONO |
| Manufacturer | CZH-LABS |
| Material Type | fiber |
| Connector Type | Nema 5-15r |
| Specification Met | CE, NEMA, UL |
| Compatible Devices | All |
| Included Components | Outlet Power Module 1PCS |
| Total Power Outlets | 4 |
