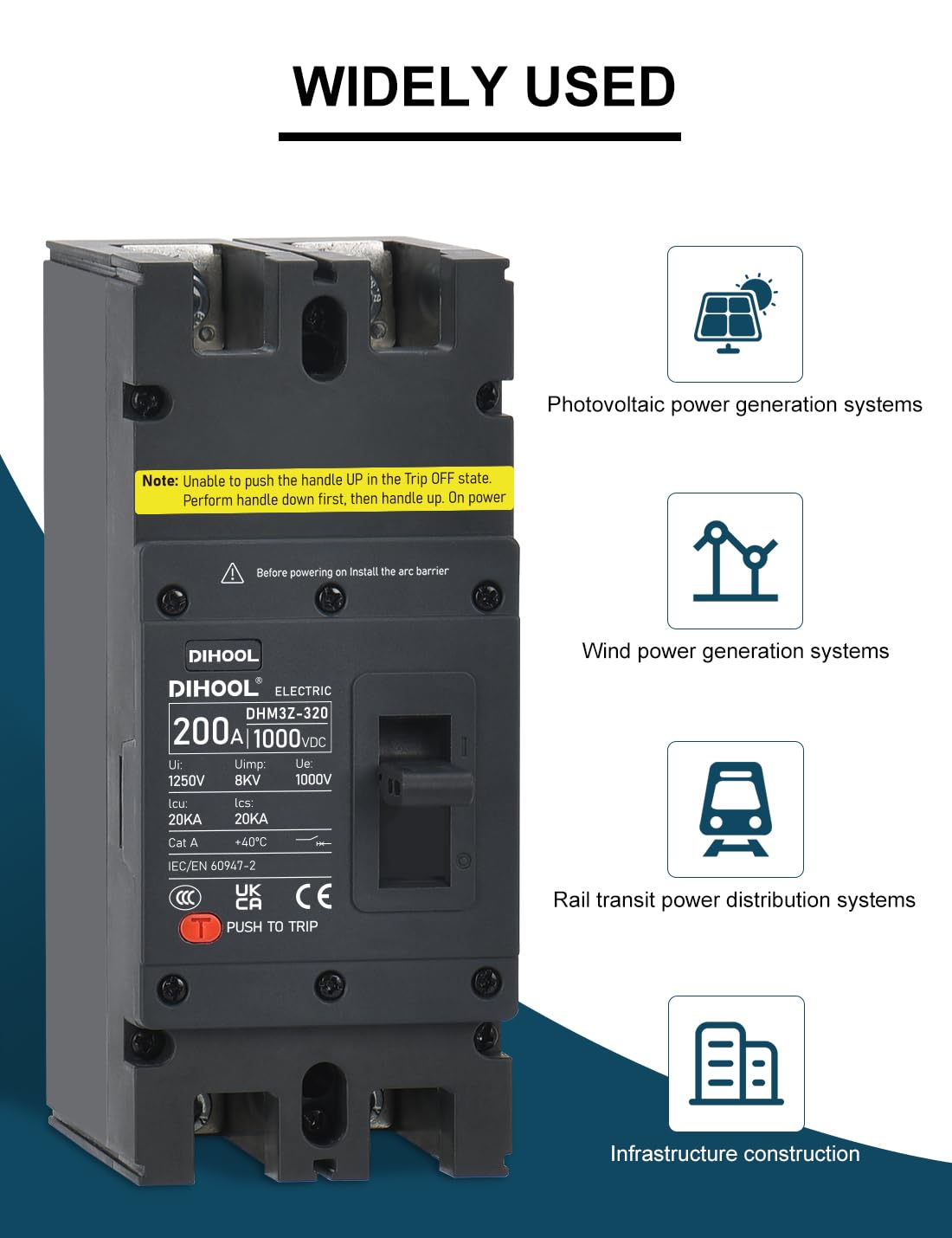

DIHOOL 200 Amp DC Circuit Breaker,2P 1000V 20kA Breaking Capacity Battery Disconnect Switch with Thermal Magnetic Trip for Solar, UPS, Battery
Product details
| Management number | 210099756 | Release Date | 2026/04/02 | List Price | $27.55 | Model Number | 210099756 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Bidirectional Switch:can effectively trip in the event of a short circuit on both the supply side and the load side, preventing overheating or fire risks.
- High-Capacity DC Circuit Breaker: Designed for heavy-duty applications, this 160 Amp DC circuit breaker provides reliable overload and short-circuit protection, ensuring safe operation of your electrical systems.
- Thermal Magnetic Trip:Equipped with advanced thermal magnetic trip technology, this breaker offers precise protection against circuit overloads and short circuits, making it ideal for high-power DC systems.
- Silver Contacts:Features 50% silver in moving contacts and 85% silver in stationary contacts, ensuring superior conductivity, durability, and resistance to wear and corrosion.
- High Voltage & Breaking Capacity:Operates at a working voltage of 1000V, with a short-circuit breaking capacity of 20kA at 1000V. Perfect for demanding applications like solar panels, UPS systems, and datacenters.
- Versatile & Easy to Install:Suitable for a wide range of DC applications, including photovoltaic systems, batteries, RVs, marine equipment, and trucks. Mounts easily on panels with screws (size: 75mm x 180mm x 125mm) for secure installation.
| Model | DHM3Z-200A |
|---|---|
| Brand Name | DIHOOL |
| Item Weight | 2.2 Kilograms |
| Part Number | US-DHM3Z-200A |
| Manufacturer | DIHOOL ELECTRIC |
| Mounting Type | Screw Mount |
| Current Rating | 200 Amps |
| Number of Poles | 2 |
| Included Components | Arc barrier |
| Circuit Breaker Type | Standard |
| Item Dimensions D x W x H | 4.9"D x 2.95"W x 7.08"H |
