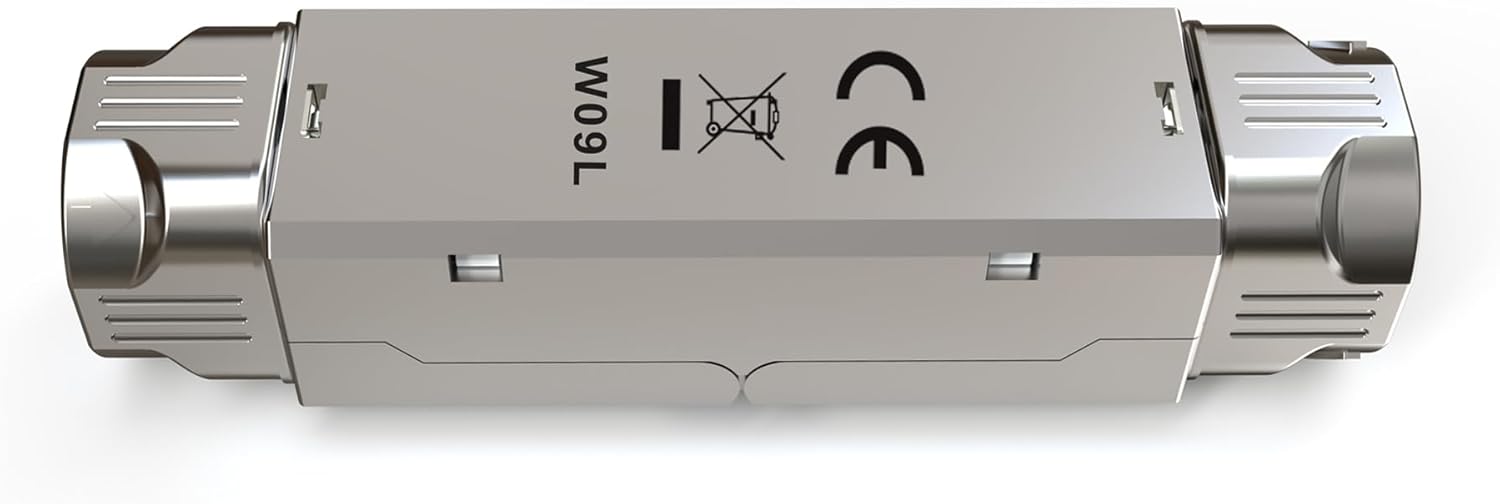

Digitus Cat. 6A Connection Module - 500 MHz - 10 GBase-T - Shielded - Coupling for Field Applications - LSA Cat Connector
Product details
| Management number | 217016870 | Release Date | 2026/04/19 | List Price | $8.43 | Model Number | 217016870 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
The DIGITUS® CAT connector for field applications serves to connect or extend Twisted Pair cables. Robust metal case for durable, stable connection. This connector is the perfect choice when it comes to quick installation or the repair of existing cables. Assembly is possible completely without special tools and the color-coded LSA insulation-displacement connector means that wiring is easy.
- The Cat. 6A LSA coupling for installation cables consists of a metal case with metal screw cap, 360 ° shield contact, and integrated cable fixation and cable grip
- The connection module supports PoE in the standards PoE, PoE+ and 4PPoE or PoE++ (IEEE 802.3af; 3at; 3bt) and makes transmission properties of 10GBase-T and 500 MHz possible
- In addition to solid conductors in installation cables, it also supports stranded conductors, e.g. rough patch cords - installation is tool-free with a conductor manager and an insulation-displacement connector in accordance with EIA/TIA 568 A & B
- The Cat. 6 A connector case is suitable for cable conductors with AWG 26/7 to 22/1 - network cables for all cabling applications can be found in the DIGITUS range
- Extensive application scenarios - repair of a patch cable, field installation on a construction site or in a server room, extension of existing Ethernet cables during renovations
| Color | silver |
|---|---|
| Model | DN-93912 |
| Wattage | 3600 |
| Frequency | 500 MHz |
| Brand Name | Digitus |
| Cable Type | Ethernet |
| Item Shape | Rund |
| Model Name | DN-93912 |
| Item Weight | 0.04 Kilograms |
| Manufacturer | DIGITUS |
| Connector Type | Unbekannt |
| Item Type Name | Field Termination Coupler |
| Number of Pins | 8 |
| Maximum Voltage | 2 Volts (DC) |
| Number of Items | 1 |
| Connector Gender | Male-to-Male |
| Specification Met | EIA, IEEE, TIA |
| Compatible Devices | 1 x |
| Data Transfer Rate | 12 Gigabits Per Second |
| Included Components | • CAT 6A connector, shielded, tool-free |
| Indoor Outdoor Usage | Outdoor |
| Compatible Phone Models | May be compatible with smartphones, specific models not listed |
| Connectivity Technology | Cat |
| Ethernet Cable Category | Cat 6a |
| Recommended Uses For Product | Repair of patch cables, field mounting on the construction site or extending existing Ethernet cables during conversion work |
| Global Trade Identification Number | 04016032458623 |
| EU Spare Part Availability Duration | 1 Years |
| Other Special Features of the Product | Shielded, 500 MHz, 10GBase-T, tool-free |
