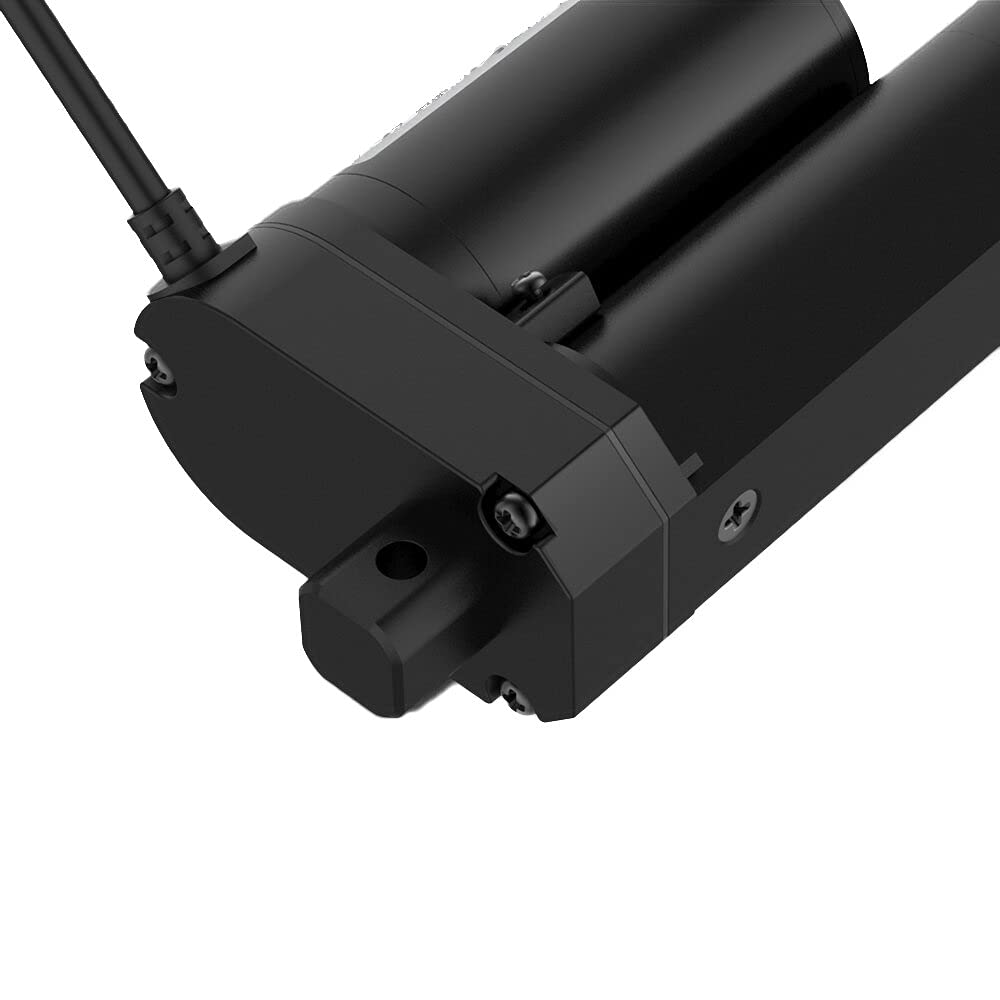

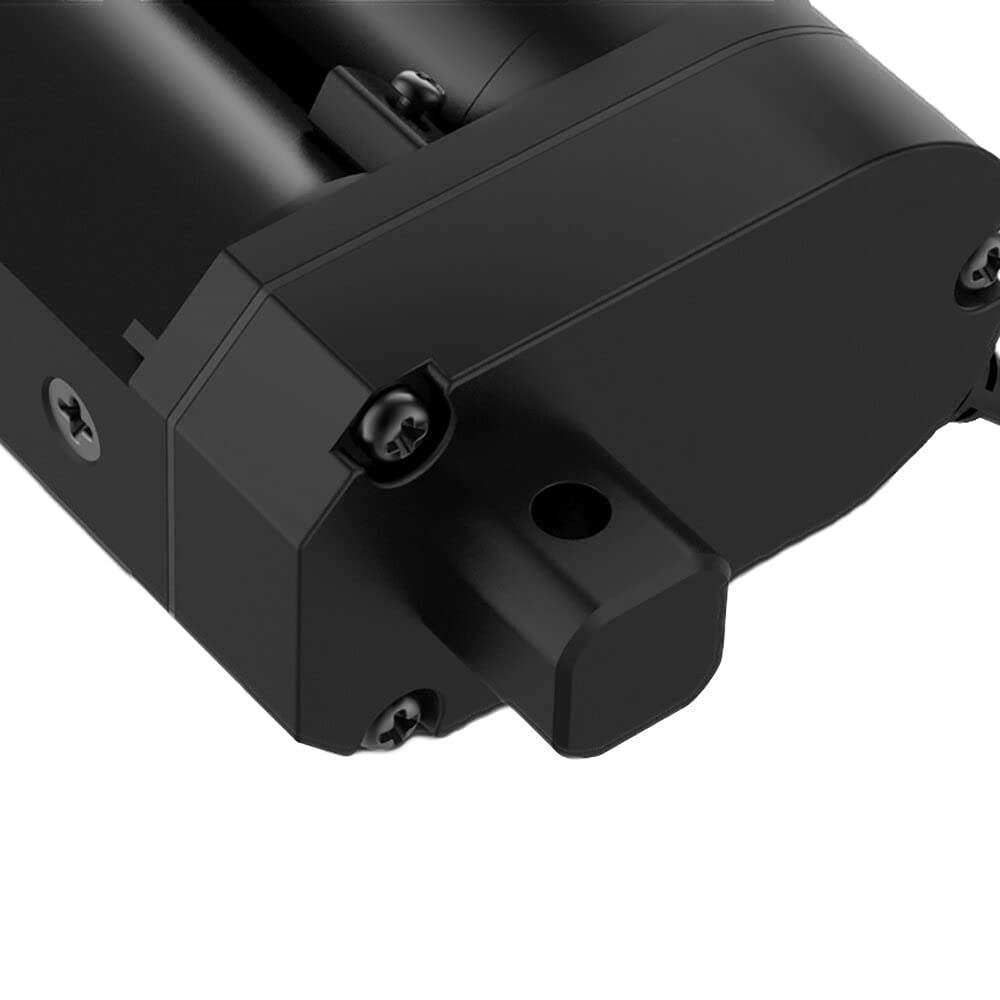

DC 12V Linear Actuator 50mm Stroke 100/200/300/500/700/1000N Linear Drive Electric Motor Controller
Product details
| Management number | 211205178 | Release Date | 2026/04/04 | List Price | $36.00 | Model Number | 211205178 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Features:- [Built-in limit switches]: Self-locking function. The telescopic rod will automatically stop when it reaches the top/bottom. Make sure the motor will not burn empty.- [Stop Anywhere]: Cut off the power, it can be stop at any position, with machine lock, safe and secure.- [Metal gears]: powder alchemy technology, pure metal gears, double strength and toughness.- [Aluminum Alloy Material]: IP54 protection, is a power unit. The surface has undergone 27 polishing processes, and the structure design is tight.- [Low Resistance More Power-Saving]: the wire uses oxygen-free pure copper as the conductor, low resistance, durable and safe to use.Specification:Material: Aluminum alloyInput Voltage: DC 12VRated power: 20W, Max. 30WAmbient temperature: -20°C to + 75°CStandard protection class: IP54Noise level:Less than 42dBStroke length: 50mm / 2inchRetracted length: 155mmExtended length: 205mmOptions100N 90mm per second / 150N 70mm per second / 180N 50mm per second /200N 40mm per second / 230N 25mm per second / 250N 15mm per second /300N 30mm per second / 500N 20mm per second / 700N 10mm per second /1000N 5mm per second(optional)Quantity: 1pcForce And Speed:100N≈10kg / 150N≈15kg /180N≈18kg / 200N≈20kg /230N≈23kg / 250N≈25kg / 300N≈30kg / 500N≈50kg /700N≈70kg / 1000N≈100kgIf you would like other stroke, please click to check:50mm Stroke ID: 1856841100mm Stroke ID: 1856938150mm Stroke ID: 1856986200mm Stroke ID: 1856992250mm Stroke ID: 1857010Produce Included:1 x12V Linear Actuator
- - [Built-in limit switches]: Self-locking function. The telescopic rod will automatically stop when it reaches the top/bottom. Make sure the motor will not burn empty.
- - [Stop Anywhere]: Cut off the power, it can be stop at any position, with machine lock, safe and secure.
- - [Metal gears]: powder alchemy technology, pure metal gears, double strength and toughness.
- - [Aluminum Alloy Material]: IP54 protection, is a power unit. The surface has undergone 27 polishing processes, and the structure design is tight.
- - [Low Resistance More Power-Saving]: the wire uses oxygen-free pure copper as the conductor, low resistance, durable and safe to use.
| Item Weight | 1.92 pounds |
|---|---|
| Manufacturer | Acofuns |
| Item model number | ATOOL1856841-180N 50mm per second |
| Package Dimensions | 4.72 x 3.15 x 1.97 inches |
| Is Discontinued By Manufacturer | No |
