8MP USB Camera Module - Wide Angle 180-Degree Fisheye Lens Webcam Board for Computer, IMX179 4K Security CCTV Camera for Raspberry Pi Mac
Product details
| Management number | 216135534 | Release Date | 2026/04/19 | List Price | $23.60 | Model Number | 216135534 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
KK-USB800W02G-Serials wide angle lens 8MP HD high resolution USB webcam camera for high end video image.Compact camera for all kinds of machine vision,Wide application for 3D scanner,VR camera,electronic microscope,medical machine... Specification: Sensor (1/3.2”) IMX179 Picture format MJPEG/YUY2 /USB Protocal USB2.0 HS/FS Auto exposure AEC Support/Auto white blance AEB Support Performance: 3264X2448 MJPEG 15fps YUY2 2fps/3200X2400 MJPEG 30fps YUY2 30fps 2592X1944 MJPEG 15fps YUY2 3fps/2048X1536 MJPEG 20fps YUY2 3fps 1600X1200 MJPEG 20fps YUY2 10fps/1280X960 MJPEG 20fps YUY2 10fps 1024X768 MJPEG 30fps YUY2 10fps/800X600 MJPEG 30fps YUY2 30fps 640X480 MJPEG 30fps YUY2 30fp Adjustable parameters:Brightness/Contrast/Color saturation /Definition/Gamma/WB Night vision optional, can support IR Cut and IR board for IR night vision. voltage DC 5V/current 150mA/work temperature DEGREES(-20~70) Size: 38mm*38mm/32*32mm(other size cutomised) Support OS "WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later
- Wide Angle 180 Degree Fisheye Usb Camera Module:Webcamera_usb usb camera module with wide angle 180 degree fisheye,8MP Full HD 2448p web cameras module can meet most capturing and video requirements,High resolution 4K camera module with imx179 image sensor which is the high standard in terms of image quality and sensitivity performance,equipped with 1 meters usb cable,Support otg optional.
- FULL HD 4K 2448P USB WEBCAM Module:The streaming camera module provides incredibly sharp 4K FHD to capture crystal clear images and records 2448p@15fps video.Small outlets,can embedded in most machines,used for all kinds of machine as below: machinery equipment,all-in-one machine,POS equipment,STB,smart box TV BOX,advisement player,LED display,automatic vending machine,safety box,notebook,video door phone,MID,Tablet external,evaluator,Medical Equipment,on-the-spot law enforcement,etc.
- High speed USB 2.0 interface USB Camera Module Mini Webcam Module:High quality imx179 image Sensor for high quality image, 8.0 Megapixel,Max resolution:3264*2448P,High frame rate 2448P@15fps,Compression format :MJPEG / YUV2(YUYV),Lower color reproduction deviation,White balance Function:Excellent indoor and outdoor effects,vivid colors. Compact camera module great fit for all kinds of machine vision,Wide application for 3D scanner,VR camera,electronic microscope,medical machine...
- MJPEG/YUY2 Compression Format Usb Camera Module: USB camera module with MJPEG/YUY2 compression format help to save more storage space,streaming with less demand on your computer provides faster and smoother video uploading.2448P FHD high resolution 8 megapixel usb Camera,USB camera module with High definition and lower Color reproduction deviation produce sharp image and accurate information,great fit for high standard medical industry requirements.

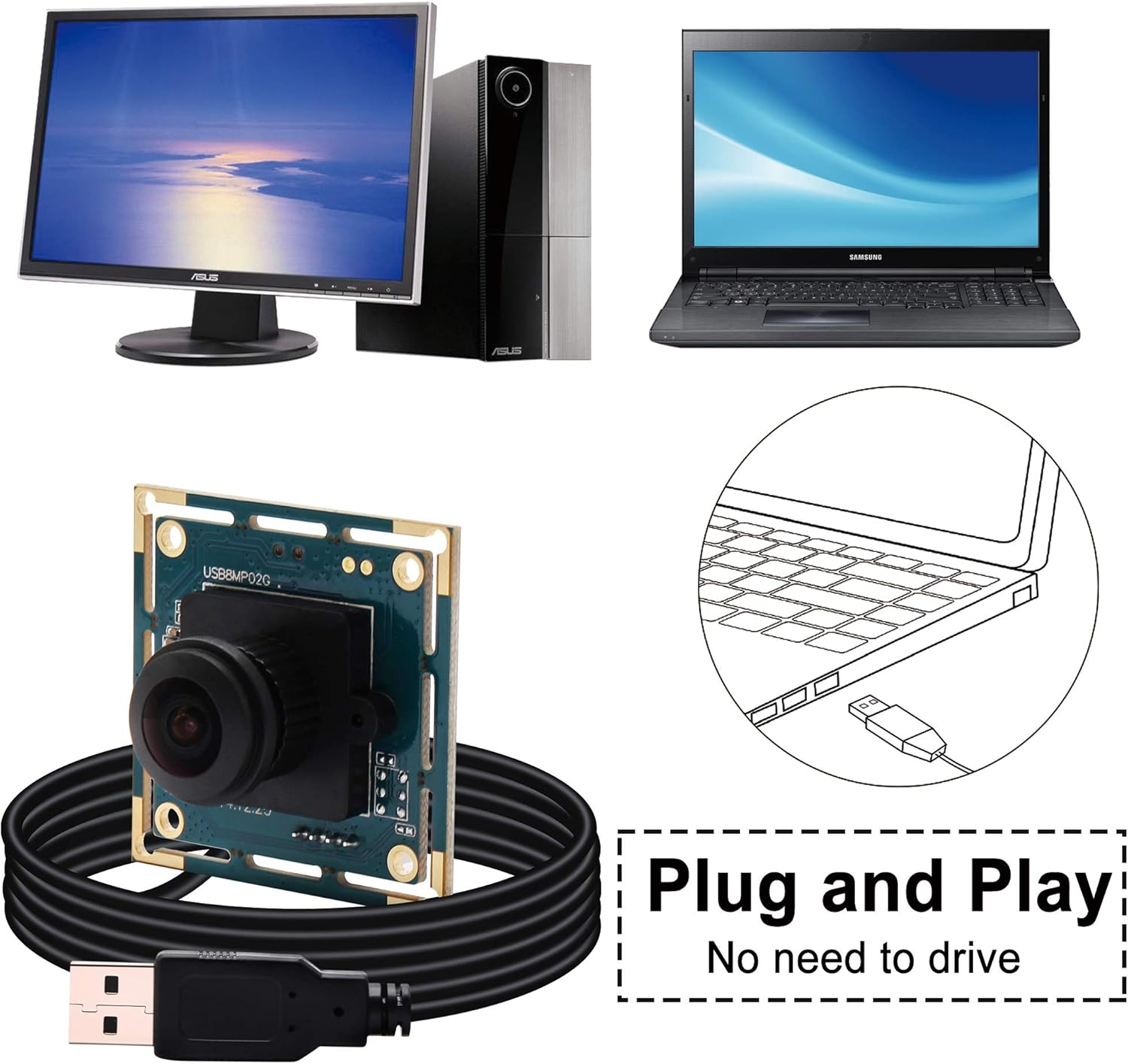

- Plug and Play&UVC Compliant Web Cam Module：Max. Resolution :3264(H) X 2448(V):High Definition 1024x768@30fps/3200x2400@ 20fps/3264X2448@15fps,Usb camera mini webcam module with UVC compliant for use in most OS:Windows,Linux,Android,Mac,etc,Operation System Request:Win8 or above,Linux with UVC(above linux-2.6.26),MAC-OS X 10.4.8 or later,Android 4.0 or above with UVC.
| UPC | 761780356465 |
|---|---|
| Zoom | Digital |
| Brand | webcamera_usb |
| Color | 180 Degree fisheye lens |
| Features | 180degree fisheye lens, 8mp 4K, Camera with UVC for computer laptop pc, Lightweight, Mini size |
| Lens Type | Fisheye |
| Focus Type | Fixed Focus |
| Model Name | 8mp USB Camera for Computer Wide Angle PC Camera 180degree Fisheye Lens Webcam |
| Style Name | 8mp USB camera wide angle pc camera for computer |
| File Format | M-JPEG/YUY2 |
| Form Factor | Compact |
| Screen Size | 24 |
| Sensor Type | SONY IMX179 |
| Manufacturer | webcamera_usb |
| Model Number | webcam usb video camera module |
| Optical Zoom | 1 x |
| BuiltIn Media | 1* 1meter/3.3ft USB cable, 180 degree fisheye lens,sony imx170 image sensor, User Manual |
| Viewing Angle | 132 Degrees |
| Camcorder Type | Video Camera |
| Item Type Name | 8mp USB Camera for Computer Wide Angle PC Camera 180degree Fisheye Lens Webcam |
| Shooting Modes | Rolling Shutter |
| Antenna Location | 3D scanner, QR code scan machine, baby camera, bar code scan machine, engraving machine vision, home video surveillance system, laser engraver camera, lightburn camera, monitoring 3D printer, robot and machine vision, video conference |
| Maximum Aperture | 2.8 Millimeters |
| Operating System | ANDROID, Linux with UVC, Mac-OS X 10.4.8 or later, UBUNTU CHROME OS, WinXP/Vista/WIN7/WIN8/WIN9/WIN10/WIN11, etc |
| Video Resolution | 4K, 8mp |
| Flash Memory Type | SD |
| Photo Sensor Size | 1/3.2-inch |
| Compatible Devices | Computer, desktop computer, Laptop, Personal Computer, Smartphone, Tablet |
| Image Aspect Ratio | 4:3 |
| Image stabilization | Optical |
| Maximum Focal Length | 32 Millimeters |
| Video Capture Format | MP4 |
| Wireless Compability | Infrared |
| Exposure Control Type | AEB, AEC, Automatic |
| Are Batteries Included | No |
| Supported Image Format | JPEG |
| Water Resistance Level | Not Water Resistant |
| White Balance Settings | Auto |
| Connectivity Technology | USB |
| Has Image Stabilization | Yes |
| Upper Temperature Rating | 70 Degrees Celsius |
| Item Dimensions D x W x H | 1.5"D x 1.5"W x 0.9"H |
| Display Resolution Maximum | 3262X2448 Pixels |
| Effective Still Resolution | 2448 Pixels |
| Effective Video Resolution | 2448 Pixels |
| Flash Memory Video Speed Class | V30 |
