6 Quart Hydraulic Power Unit 1.6KW Power, 12V DC Double Acting Hydraulic Pump for Dump Trailer Car Lifting, Hydraulic Pump Power Unit, 6L Plastic Tank, 3200 PSI Max Pressure Weonefit

Item DescriptionThis hydraulic pump is a double-acting power unit for both lifting and lowering. It has a 6-quart sturdy plastic reservoir and is designed with a 12V DC motor that can provide strong power for hydraulic systems like dump trailers, forklifts, lifting platforms, etc.SpecificationsColour: WhitePorts: SAE#6 Tank Capacity: 6LTank Material: PlasticMotor voltage: DC12VMounting: Horizonal MountPump Action: Double ActingReservoir: Translucent ReservoirSize: ‎6 Quart Plastic Tank DoubleFunction: Power Up / Power DownFit for the Following ModelsReplacement for Dump Trailers, Auto Repair, Dump Beds, Lift Gates, & IndustrialFeaturesQuick Start＆LiftingWith the powerful 12V DC electric motor, our hydraulic pump for dump trailers can start rapidly and provide quick oil output. In addition, it can provide strong power that will lift heavy objects in a short period.Long LastingYou can rely on the quality of this electric hydraulic pump as it is made of special-treated sturdy plastic, and the whole structure has been reinforced. It is also equipped with a powerful electric motor that you can use as often as you like.Convenient DesignOur hydraulic electric pump has been fully assembled. It comes with SAE#6 connectors for replacement. The whole power unit is easy to wire and easy to operate.Package Includes1x Hydraulic Power Unit (As Pics Shown)

• Double-Acting Power Performance - Weonefit double-acting hydraulic power unit has a 12V DC motor (Power:1.6-3.0kw) and a 6-quart plastic reservoir; it has SAE#6 ports with 3200 PSI max relief setting on A and 1500 PSI on B port, ensuring high-force output for demanding hydraulic applications. The flow rate is 2GPM. Rated speed: 2850 r/min.
• Rapid Response Operation - The high-efficiency motor enables instant startup and rapid oil output, significantly reducing cycle times for dump trailers, lifting platforms, and hydraulic beds. Achieve full lifting/lowering actions without delay.
• Product Specifications - Tank Material: Plastic | Displacement of hydraulic pump: 0.825GPM | Pressure relief valve: 22MPA (3200 PSI Max. Relief Setting For Increased Lifting Power on A port) | Rated speed: 2850R/MIN | Motor power: 1.6KW | Motor voltage: DC12V | Tank Capacity: 6L | Max Relief Setting on B port: 1500 PSI | Ports: SAE # 6.

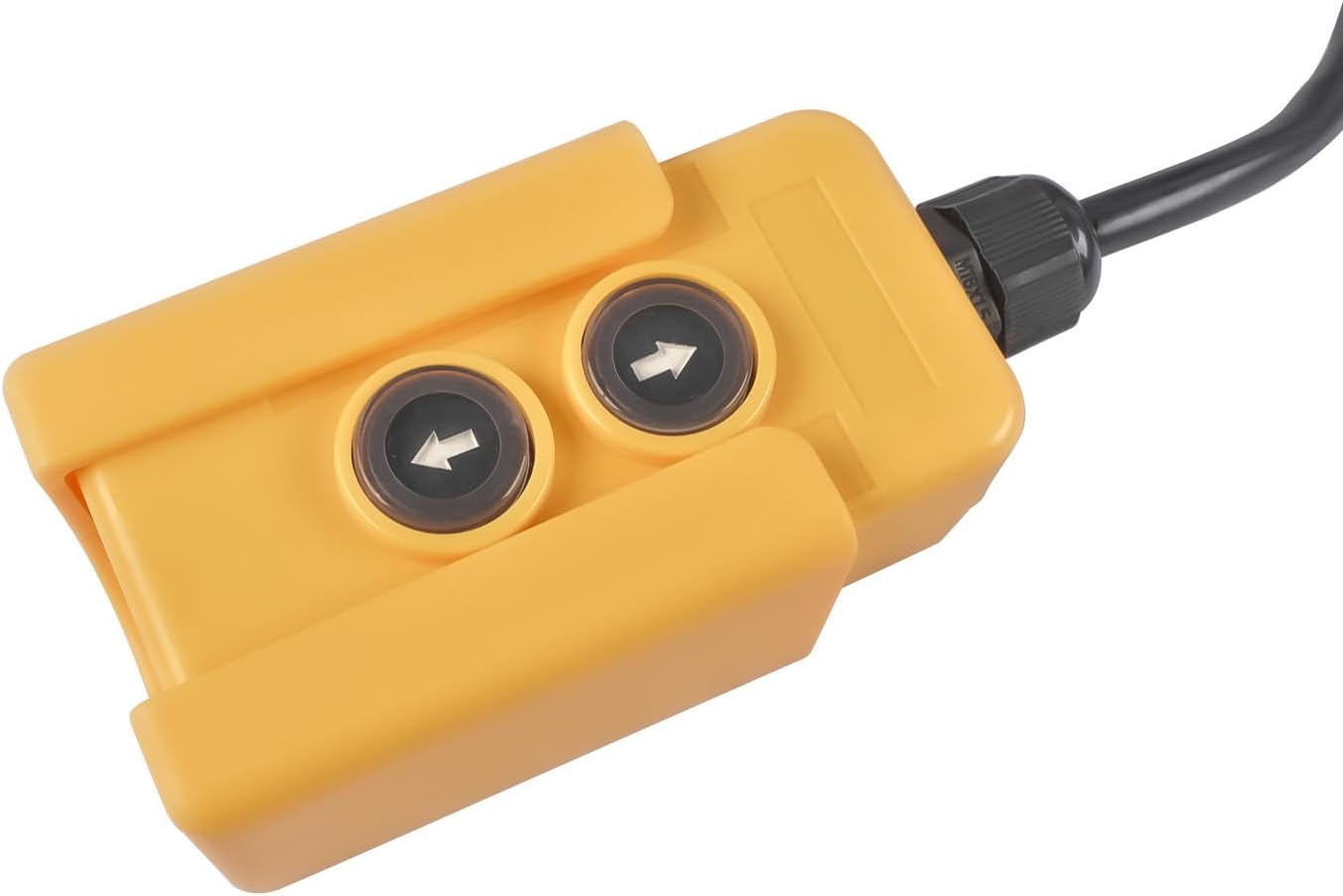

• Complete Plug-and-Play Kit - Pre-assembled for immediate use, the pump includes simplified wiring with clear instructions. The package contains one additional SAE #6 connector and a 15-foot remote control for flexible operation at a distance. All necessary components are included for straightforward installation without modifications.
• Wide Application - Weonefit hydraulic pump is perfect for replacing your dump trailer pump, and you get a great performing hydraulic power unit for half the cost of a dump truck pump store. It can also be used as a power unit for other hydraulic systems such as garden tractors, forklifts, stackers, small or medium-sized lifting platforms, etc.
